Warranty Information
Product Warranty12 ปี
Linear Power Warranty30 ปี
Module Efficiency22.36%

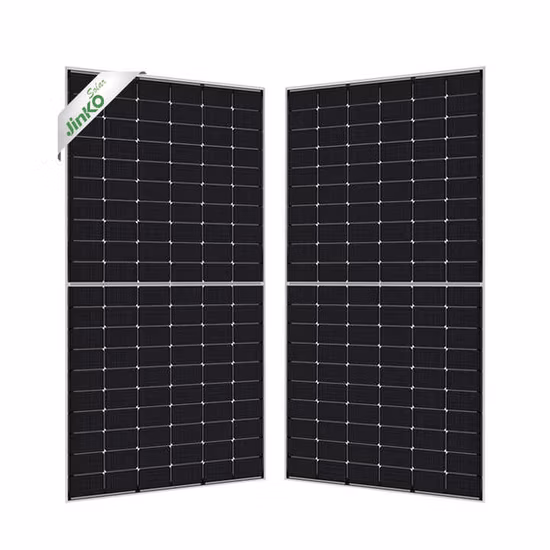

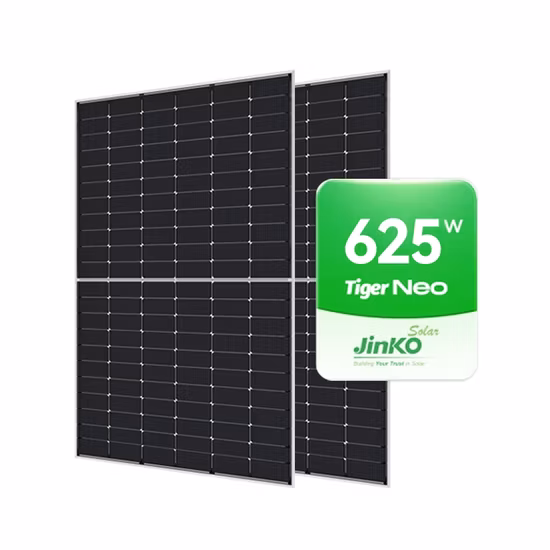

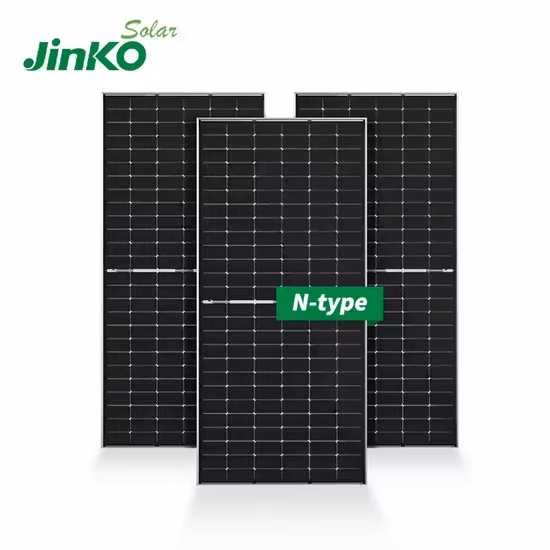

JinKO 605-625 Watt (TigerNeo 78HL4-BDV)
Bifacial Module with Dual Glass
ราคา (เริ่มต้น)
2,2XX.-/แผง
Mechanical Characteristics
Cell Type
N-type Mono-crystalline
No. of cells
156 (2×78)
Dimensions
2465×1134×30 mm (97.05×44.65×1.18 inch)
Weight
34.0 kg (76.38 Ibs)
Front Glass
2.0 mm, Anti-Reflection Coating
Back Glass
2.0 mm, Heat Strengthened Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated
Output Cables
TUV 1×4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length
Facebook
LINE
WeChatKey Features
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
Hot 2.0 Technology
The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Enhanced Mechanical Load
Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).
Higher Power Output
Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
